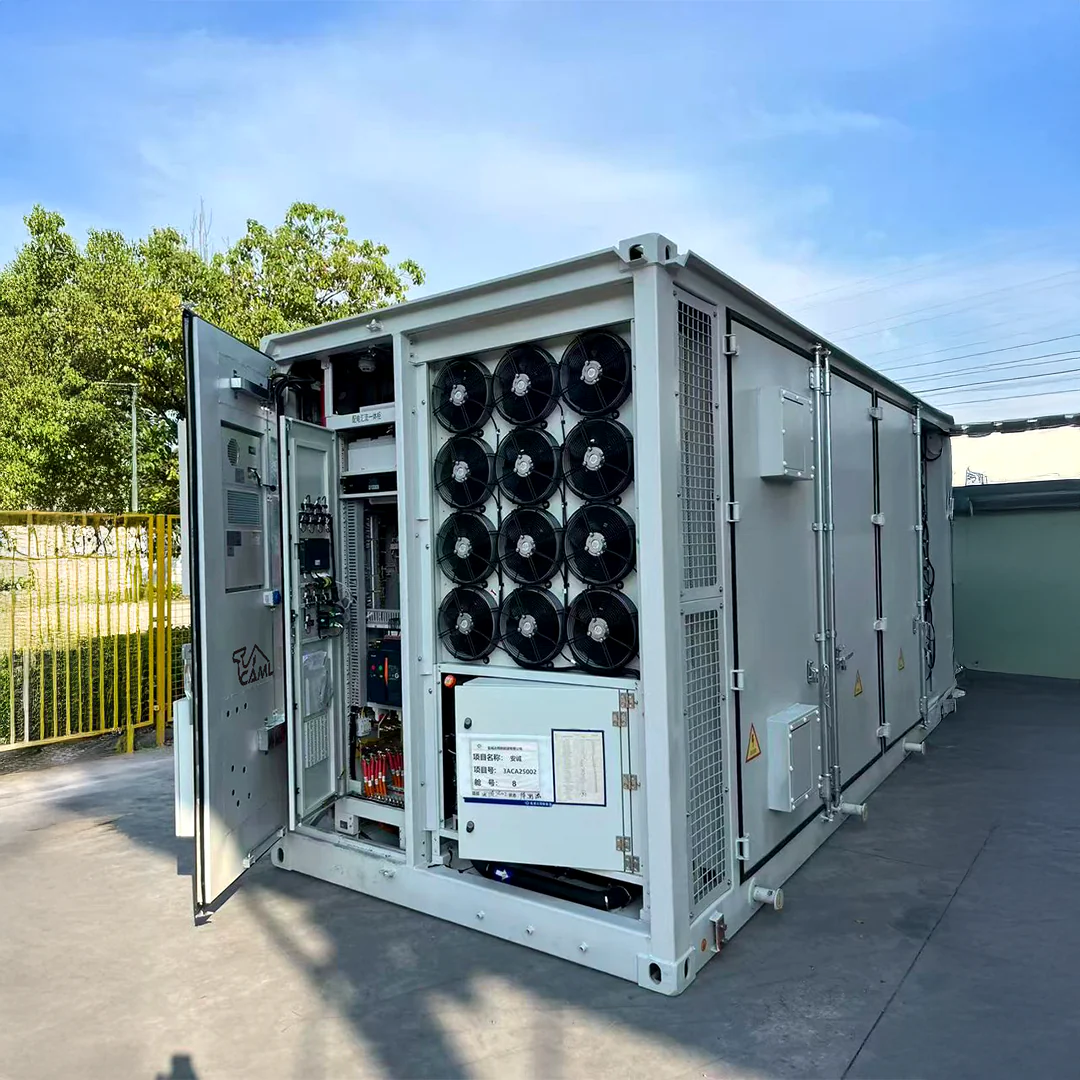

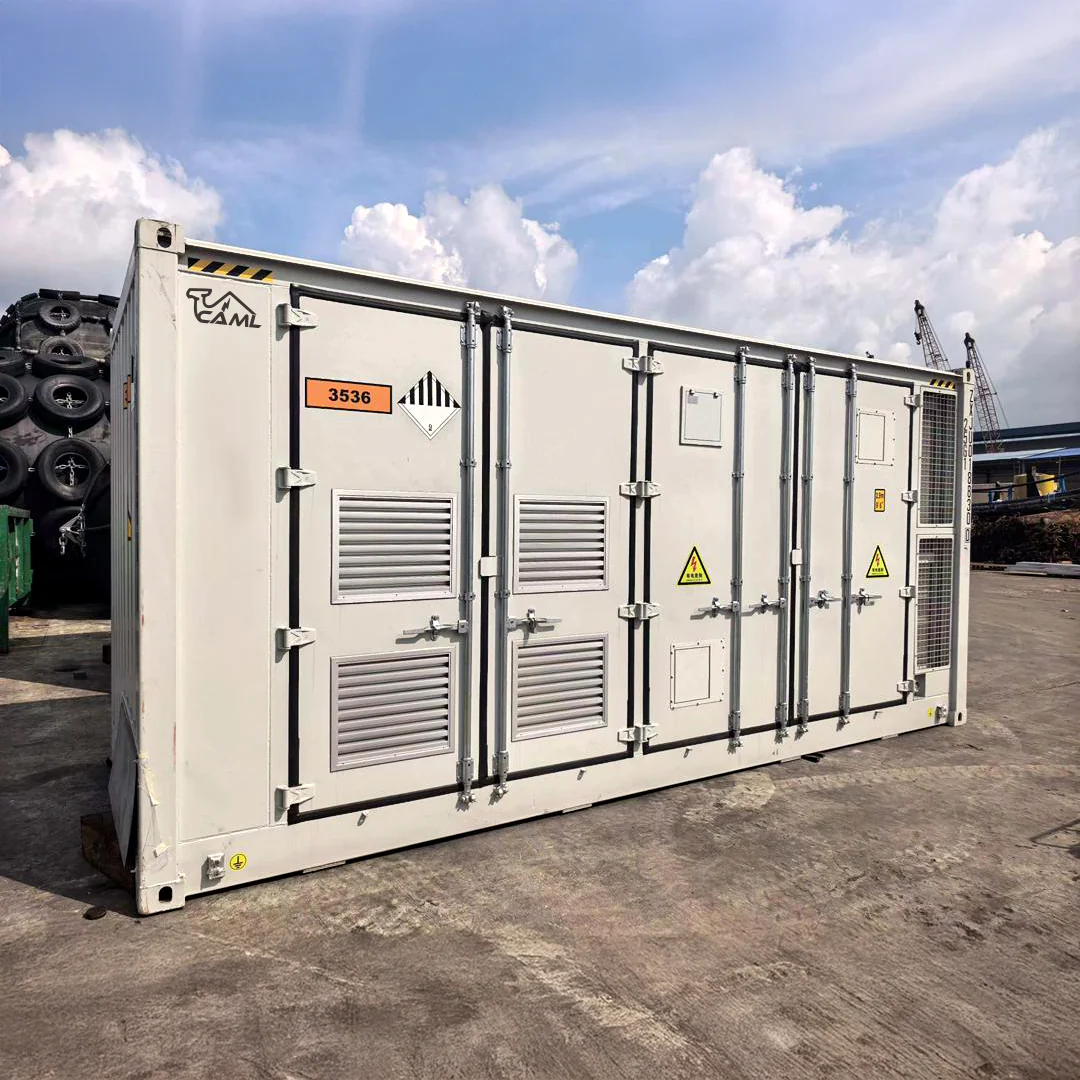

CAML 5 MWh Liquid Cooled Containerized Battery Energy Storage System (BESS)
Loom introduces the CAML 5 MWh Containerized BESS Solution for utility-scale Battery Energy Storage System (BESS) projects. These systems are designed for peak demand management and peak-shaving applications.
The BESS charges during daytime hours (11:00 AM to 2:00 PM) using solar power when electricity tariffs are at their lowest. During evening peak demand hours (5:00 PM to 11:00 PM), the stored energy is discharged to reduce grid dependency and lower electricity costs.
Key Features:
- Scalable: Modular & Scalable Design
- Safe: Multi-layer Safety Protection
- Efficient: Thermal Management Optimized
- Smart: BMS + EMS Intelligent Control
- Integrated: Seamless System Integration
BESS Container Contains:
- Container Enclosure
- HVAC/Thermal System
- Fire Suppression System
- Battery Packs
- DC Combiner Panel
- BMS & Control Panel
- Emergency Disconnect
- Sensors & Monitoring
- Internal Caballing & Busbars
Technical Parameters
| Battery Parameters | |
| Nominal Capacity (kWh) |
5015.16 kWh |
| Nominal Voltage (V) | 1331.2V |
| Voltage Range | 1164.8~1497.6 V |
| Cell Type | LFP 3.2V/314A Ah |
| Cluster Configuration | 1P 416S*12 |
| Nominal Power | 2507.9 kW @ 0.5CP ; 1258.8 kW @ 0.25CP |
| System Parameters | |
| Auxiliary Power Supply | 400V AC, 50/60Hz |
| Operation Ambient Temp | -30°C to 50°C |
| Altitude | ≤3000m |
| SOC Calculation Accuracy | ≤3% (after balacing) |
| Relative Humidity | ≤100% RH (non condensing) |
| General Parameters | |
| IP Rating | Container: IP55, Module: IP67 |
| Cooling Mode | Liquid Cooling |
| Noise | ≤75dB (A), Standard Version; ≤65dB (A), Silencer Assembly (Optional) |
| Weight | 42T |
| Corrosion Proof Grade | C4 |
| Fire Suppression System | Smoke and heat detectors, FACP, ventilation system, dry pipes with sprinklers, aerosol |
| Communication Port | Support CAN/Modbus 485 / TCP communication Methods; CAN communication is recommended |
| Dimensions |
6058 x 2436 x 2896 mm 19.87 x 7.99 x 9.50 ft |
| Certification |
|
| Battery Cell |
IEC62619, UL1973, UL9540A |
| Battery Pack |
IEC60730-1, UN38.3, UL1973, UL9540A U 60730-1 |
| Battery Rack |
IEC62619, IEC60730-1, IEC 63056, IEC62477-1, UL1973, UL9540A, UL 60730-1 |
| System |
IEC 62477-1, IEC 60730-1, EN IEC 61000-6-2/4, UN38.3, UN3536, UL9540 UL 60730-1 |
Download datasheet from here.
For more details, speak with our BESS expert, Mr. Nishi Chandra, at 9650443724 or email [email protected]
